New generation of intelligent universal programmable PWM (Pulse Width Modulation) process controller with Wifi and USB



  • User interface via the built-in web server
  • 3 Analogue optional inputs ±0-15VDC, >15bit resolution
  • 3 Analogue optional inputs ±0-15VDC, 12bit resolution
  • 1 Input for thermocouple with breakage protection (TED) and cold solder joint compensation (CJC)
  • 6 Logic outputs, on/off (NPN) or PWM (Pulse Width Modulation)
  • 1 High Power (15A) driver output
  • 2 Drivers for stepper motors
  • 1 USB connector for data communication

Features

in-system Process regulator is a completely new generation with intelligent PWM (Pulse Width Modulated) control and stepper motor controls combined in a single product for use in a long industrial processes, e.g. temperature regulation and control of heaters, flow regulation of dosing or monitoring of atmosphere control in production furnaces.

The web interface makes it possible to obtain detailed, user-friendly online information such as the device’s status, as well as output data directly to another process control system via the Web API.



in-system Process regulator continuously monitors the customer-selected process variables, such as temperature, pressure, flow or level within the preset range. Feedback from the individual sensors is used to identify any deviation from a set point and automatically adjust the output until the parameters are within range. This precise control improves the quality control, while enabling the automation of complex processes. This improves efficiency and safety without the need for increased labour.

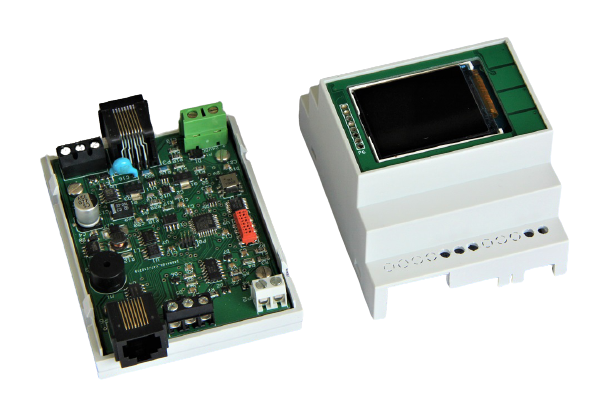

in-system Process regulator is also available both in a stand-alone version for DIN rail mounting and in a built-in version and as an OEM product with a programmable colour display with its own front plate with text and company logo.

Specifications

Technical data:

  • Supply: 15-24VDC.
  • Dimensions and weight: HxWxD: 65x100x20 mm, weight: 55 grams
  • Built-in Wifi Web server.
  • Possible to connect a colour display with 6 lines for text and data, see under accessories.
  • Optional thermos sensor input, choose between type S, R, K, N, E, T, and Pt-100 or Pt-1000.
  • Built-in thermocouple breakage protection (TED) and cold solder joint compensation (CJC).
  • Off-set correction for correct oven temperature.
  • 6 analogue optional inputs, 0-15 VDC, 0/4-20 mA and 1 separate input for temperature sensor.
  • 6 logic outputs, on/off (NPN) or PWM (Pulse Width Modulation) for temperature control, regulation of proportional solenoid valve for control of e.g. flow or other optional parameter.
  • 2 stepper motor drivers for control and regulation of mixing flow (gas or water).
  • 2 analogue optional signal outputs (0/4-20 mA).
  • Selection of parameters and display text and programming via Wifi.
    • Process control: Manual or auto, setting for Heating [Tset] and heating and cooling rate.
    • Setting for alarm limits.
    • Setting for 0-4/20 mA outputs.
    • Setting for relay functions – high and low alarm limits and alarm delay.
  • Customer-specific linearization of non-linear signals.

Example of use:

Process management of dosing where, for example, a constant flow is desired to be regulated and monitored, with a display of supplementary analogue signals, e.g. temperature and dew point, alarm outputs for high and low values, as well as analogue current outputs 0-4/20 mA outputs.



Process control where a constant temperature is desired to be regulated and monitored with alarm limit for high and low temperature, with setting for Heating [Tset] and heating and cooling rate, with display of current analogue input signals, alarm outputs for high and low values, as well as analogue

current outputs 0-4/20 mA outputs.



Process control of temperature and critical atmosphere in production furnaces, e.g. regulation of N2, CO2 or H2 level, supplemented with dew point display, analogue current outputs 0-4/20 mA outputs and alarms for high and low values.



Flow regulation with precision control of needle valve with stepper motor for mixing gas or water flow.



Monitoring and display of current analogue signals, alarm outputs for high and low values, as well as analogue current outputs 0-4/20 mA outputs.

Description of termination for input and output:

Number Direction Function Comments
1 input Power input 2 pole screw terminals
6 input Analog inputs (0-15VDC) 8 pin RJ45 connector
1 input Thermocouple 2 pole screw terminals
2 output Stepper motor driver 5 pol JST connector
1 output High Power driver 2 pole screw terminals
2 output Relay outputs, NPN (100 mA) 8 pin RJ45 connector
2 output PWM-outputs 8 pin RJ45 connector
2 output 0/4-20mA 4 pin RJ11 connector
1 in/output Display Intern connector
1 in/output Wifi Built-in web server for communication
1 in/output USB Built-in for programming and data readout

Accessories

Colour display with display in 6 lines, increases the possibilities of presenting quick system status while performing continuous monitoring of programmed alarm limits.

  • Option to select parameters and display text and colour.
  • Touch programming on the display front panel or via Wifi.
  • Process control: Manual or auto, setting for Heating [Tset] and heating and cooling rate.
  • Setting for alarm limits.
  • Setting for 0-4/20 mA outputs.
  • Setting for relay functions
  • High and low alarm limits and alarm delay.
  • Weights and Measures:
    • Stand-alone version for DIN mounting: HxWxD: 65x70x100 mm, weight 105 grams
    • OEM version for panel mounting in panel front or cabinet: HxWxD: 100x60x30 mm, weight: 100 grams.



Contact us by email for additional information and examples of practical use.

Documentation

Datasheet

Click to download

Menu structure

Click to download

Connection diagram

Click to download

PWM - Pulse Width Modulation

Click to download

Block chart

Click to download

Product support - FAQ

Display must be supplied with 24 VDC.

Both relays can be used for 230 VAC, max. 2 Amp.

The display can be programmed for up to 4 Solid State relay outputs, which can only be active when the display is active.

Own programming can be changed continuously in “Default” mode.  In “Reset” mode, everything can be deleted.

Nonlinear signals can be programmed either as a table or as a formula.

No, the display cannot measure AC signals.

The display can only handle one T/C type. The T/C type is selected in the order template, where you can choose between all relevant TC types.

Cold Junction Compensation is integrated in the in-system display and continuously corrects for changes in ambient temperatures so that Tset is not affected by the controller’s ambient temperature.

Thermocouple Error Detection is integrated in the in-system display and corrects immediately in the event of thermocouple faults, and shuts down the current process sequence.

Pulse Width Modulation is a digital form of modulation in which an electrical voltage alternates between two values in a square pulse modulated at a constant frequency whose width varies. The relationship between pulse and pause is called the duty cycle. The frequency in all in-system products is 1500 Hz.

Duty cycle describes the proportion of “on” time in the control process, a low operating cycle corresponds to low power because the power is off most of the time.Operating cycle is expressed as a percentage, 100% is fully on.When a digital signal is on half the time and off the other half of the time, the digital signal has a 50% duty cycle and looks like a “square” wave.

See it illustrated in three scenarios in the document PWM.

Yes, display text is completely optional. Letters, numbers and symbols can be used.
